uClamp3301H
SO-8
PROTECTION PRODUCTS

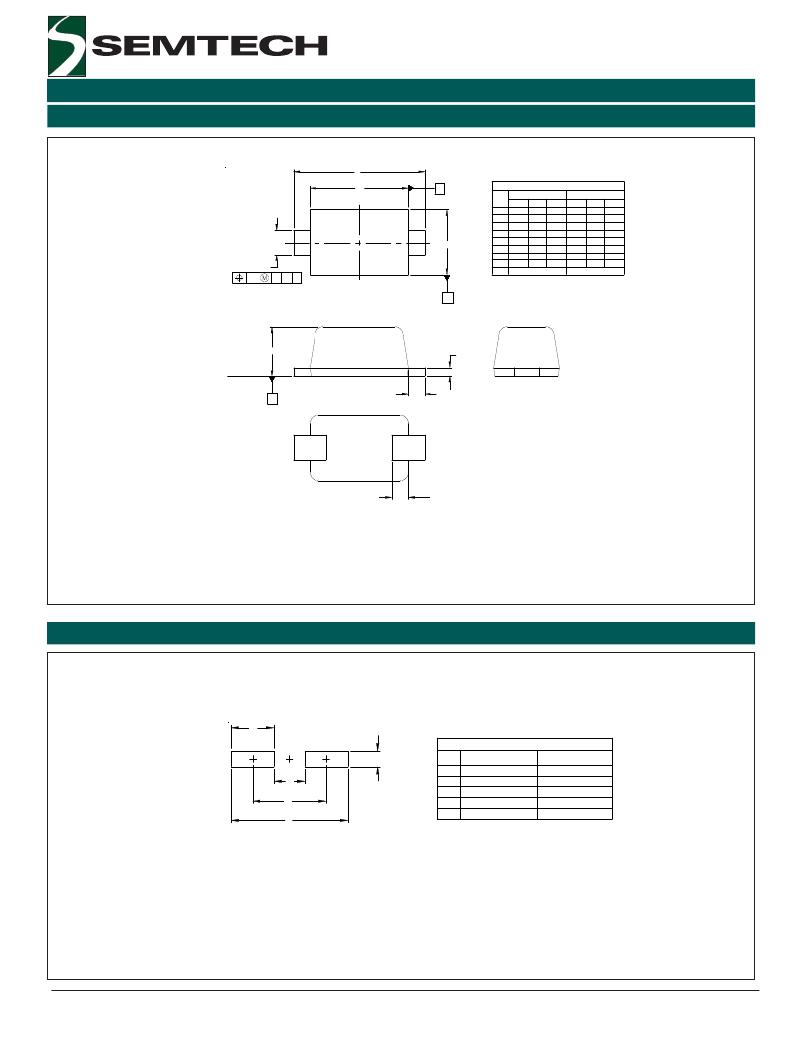

Outline Drawing - SOD-523
E
PRELIMINARY
E1
B
DIM
DIMENSIONS
INCHES MILLIMETERS
MIN NOM MAX MIN NOM MAX
0.35
0.20
A
b
c
.019
.009
.003
.023
-
-
.027
.013
.008
0.50
0.25
0.10
0.60 0.70
-
-
D
D
E
E1
L
.027
.059
.043
.003
.031
.063
.047
.008
.035
.067
.051
.011
0.70
1.50
1.10
0.10
0.80 0.90
1.60 1.70
1.20 1.30
0.20 0.30
2X b
aaa
C A B
L1
aaa
.003
.005
.008
.008
0.10
0.15 0.20
0.20
A
SEATING
PLANE
NOTES:
A
C
L
L1
c
1. CONTROLLING DIMENSIONS ARE IN MILLIMETERS (ANGLES IN DEGREES).
2. DIMENSIONS "E1" AND "D" DO NOT INCLUDE MOLD FLASH, PROTRUSIONS
OR GATE BURRS.
Land Pattern - SOD-523
Y
DIMENSIONS
G
C
Z
X
DIM
C
G
X
Y
Z
INCHES
(.057)
.024
.018
.033
.090
MILLIMETERS
(1.45)
0.60
0.45
0.85
2.30
NOTES:
1. THIS LAND PATTERN IS FOR REFERENCE PURPOSES ONLY
CONSULT YOUR MANUFACTURING GROUP TO ENSURE YOUR
COMPANY'S MANUFACTURING GUIDELINES ARE MET
? 2012 Semtech Corporation
5
www.semtech.com
